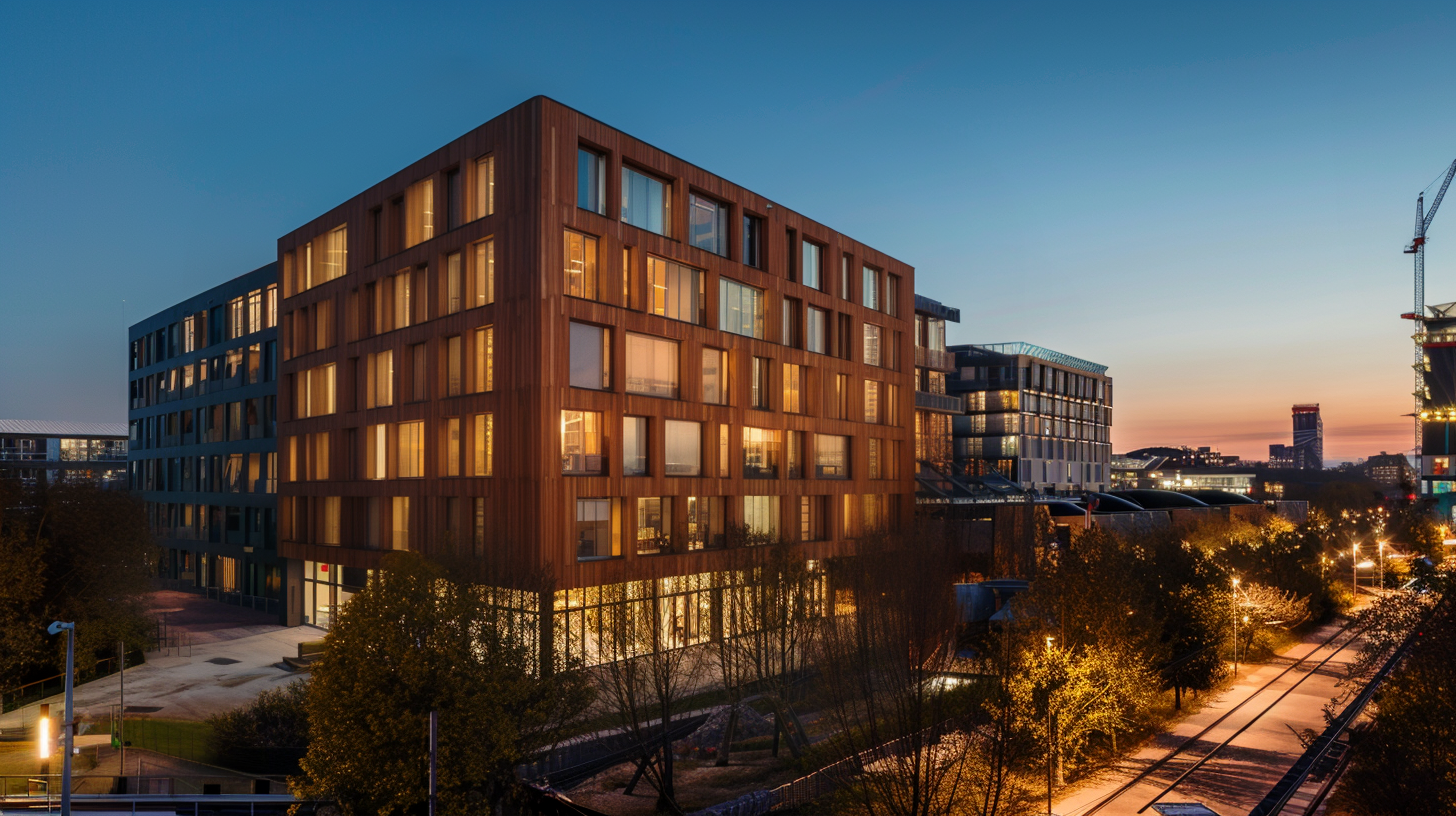

SCA Curtain Wall
SCA Curtain Wall is a facade system that simplifies the construction process through robust and well-designed system solutions.

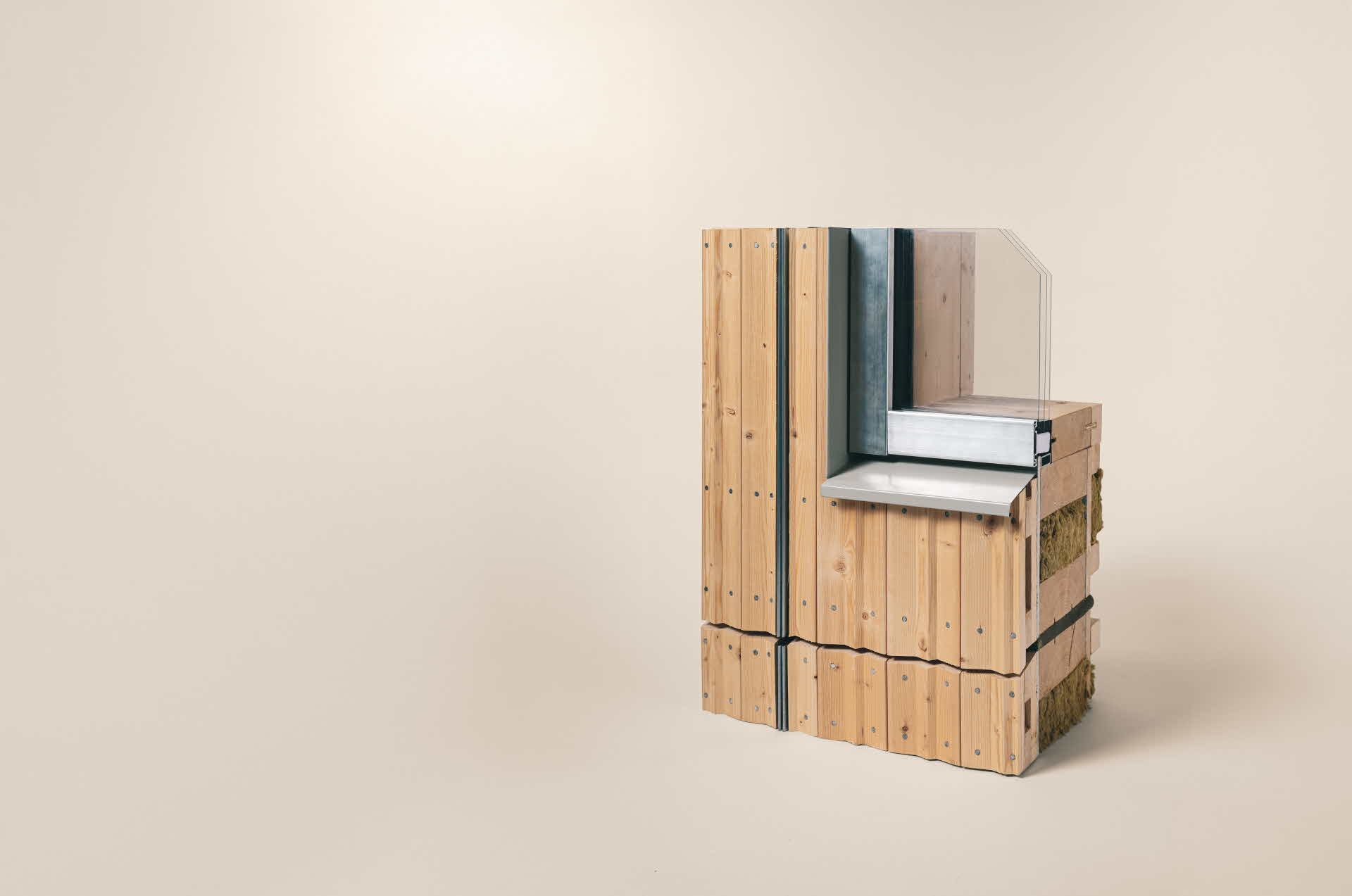

Wooden facade system
By combining solid wood products without adhesives or chemical additives with efficient fastening techniques and innovative details, the SCA Curtain Wall facade system offers robustness with an exceptionally low climate impact.
This results in a material combination that achieves outstanding performance through tailored components and connections. The system is designed to meet the demanding requirements of large-scale projects, with a focus on quality, efficiency, and risk minimization.
SCA Curtain Wall is a facade system that simplifies the construction process through robust and well-designed system solutions. The system provides excellent opportunities for unique designs and striking architectural expressions in the finished building. It is suitable for installation on all types of floor structures in new constructions and is also ideal for facade renovations to enhance energy performance.
60% lower climate impact
Designed for circularity. By choosing wood as a material in your project, you contribute to a positive climate benefit.
Architectural flexibility
The system’s selectable components allow it to be used in various environments and exceed specific functional requirements.
Security throughout the entire process
Building the system indoors under controlled conditions ensures reliability and provides significant quality advantages.
Product information
- Can be applied to multiple structural systems
- Various window and door systems can be easily integrated
- Extensive possibilities for facade materials and expressions
- Northern Swedish timber without additives
- The system is delivered with a complete facade, requiring no external finishing after installation
- Module size: 3.8 x 2.7 m
- U-value: 0.16 W/m²K with installation wall
- Maximum opening (KYM): 2.54 x 2.54 m
- Fire safety approved according to BBR and EKS
- Third-party tested and approved system for windows and doors
- Designed and dimensioned to meet the requirements of applicable Eurocodes
Teknisk data från tredjepartstester utförda av IFT Rosenheim NB 0757. Referens är prestandadeklaration DoP-SCA-250701-CW baserat på certifikat 24-004302-PR01.
Väsentliga egenskaper |
ReferensEN 13830 |
Standard |
Deklarerad klass |
Deklarerade värden |
Vattentäthet |
|
|
|
|
|
Vattentäthet |
4.4 |
EN 12154:1999 |
R7 |
Pmax 600 Pa Inget vatten identifierat. |
|
Vattentäthet Dynamisk provning |
|
EN 13050:2011 |
|
+168 Pa / +503 Pa Inget vatten identifierat. |
Vindmotstånd |
|
|
|
|
|
Karakteristisk last |
4.6 |
EN 13116 2024 |
A4 |
Tryck 1,06 kN/m2 |
|
Dimensionerande last |
4.6 |
EN 13116 2024 |
A4 |
Tryck 1,59 kN/m2 |
Slaghållfasthet |
|
|
|
|
|
Internt/Externt |
4.8 |
EN 14019:2016 |
I5/E5 |
950 mm släpphöjd (1) |
|
Luftgenomsläpplighet |
|
|
|
|
|
Luftgenomsläpplighet |
4.15 |
EN 12152:2023 |
A4/A L4 |
±600 Pa (2) |
Övriga egenskaper |
|
|
|
|
|
Värmegenomgångs-koefficient, U-värde |
4.14 |
EN ISO12631 |
|
0,16 W/m2K (3) |
|
Egenvikt, max. karakteristisk totalt |
4.5 |
EN 1991-1-1 |
|
0,83 kN/m2 (4) |
1 Tjocklek och typ av glas i elementet anpassas för att uppnå önskad slaghållfasthet.
2 Samma klass deklarerad för provföremålets totala yta (A4) och fogens totala längd (AL4).
3 Inklusive installationsvägg.
4 Beräknat värde
- 60% lower climate impact compared to a conventional aluminum system.*
*Indicative climate calculation based on EN 15978:201. Covers A1-A3. The calculation was performed in BM (Byggsektorns miljöberäkningsverktyg) v3.1, using data from Boverket’s climate database, EPD Norway, EPD Denmark, and YM.fi generic data, as well as product-specific EPDs according to SS-EN 15804:2012+A2:2019.
Project inquiry requirements
- Project name
- Planned construction start
- Drawings
- Building information
- Structural material
- Floor height
- Building dimensions
- Installation required
- Building location
- Contact details
